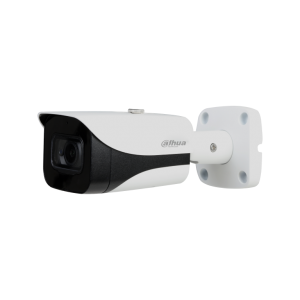

The 4K HDCVI camera adopts a powerful ISP and advanced 1/2″ image sensor, which provides superior high quality images. It also supports Starlight and 120dB true WDR for a clear image in poor lighting conditions. In addition, the camera features broad cast quality audio to provide enhanced supplementary evidence collection. Ultra–high definition and a complete set of features makes the 4K HDCVI camera an ideal choice for mid to large-size businesses and projects where both highly reliable surveillance and construction flexibility are demanded

Features:

• Starlight, 120dB True WDR, 3DNR
• Max. 4K resolution
• HD/SD switchable
• Audio in interface, built-in mic
• 3.6mm fixed lens
• Max. IR length 40m, Smart IR
• IP67, DC12V±30%

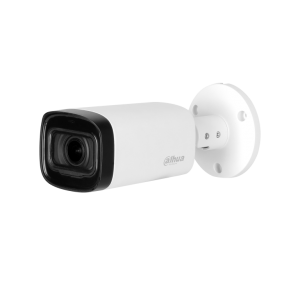

The Lite series 5MP HDCVI camera features a compact design and offers a high quality image with rich details at a friendly price. It offers various vari-focal/fixed lens models with a multi-language OSD and HD/SD switchable output. Its structural flexibility and high cost-performance makes the camera an ideal choice for SMB solutions.

Features:

• Max. 20fps@5MP
• Built-in mic
• HD and SD output switchable
• 2.7-12mm motorized lens
• Max. IR length 60m, Smart IR
• IP67, DC12V

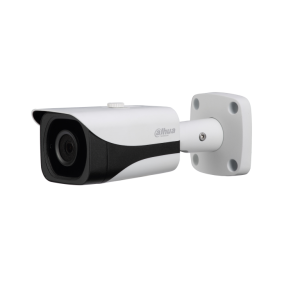

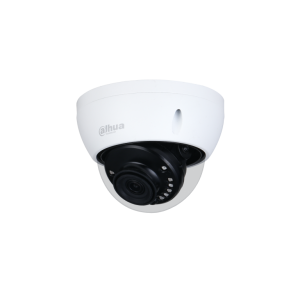

The 4MP HDCVI camera with 120dB true WDR presents a high quality image with rich details and accurate color rendition for applications with complex lighting conditions. It offers various motorized/fixed lens models with a multi-language OSD and HD&SD dual output. Its high resolution and complete set of features makes the 4MP HDCVI camera an ideal choice for mid to large-size businesses and projects where both highly reliable surveillance and construction flexibility are needed.

Features:

• 120dB True WDR, 3DNR
• Max 4MP real-time
• HD and SD dual-output
• 3.6mm fixed lens
• Max. IR length 40m, Smart IR
• IP67, DC12V

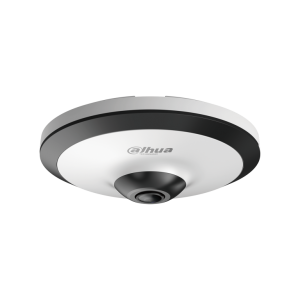

The cameras are able to provide coverage of wide, open areas, such as airports, shopping malls, retail stores, offices and more. So you wil get a whole scene just with one fisheye camera.

Features:

• 1/2.8” 5Megapixel progressive scan CMOS
• Panoramic fisheye lens
• Max. 20fps@5MP
• Built-in Mic
• 120db true WDR, Starlight, 2D&3D NR
• Max. IR length 10m, Smart IR
• DC12V

The 1080P starlight HDCVI camera presents a high quality image with rich details even under extreme low-light conditions. Also, the Lite series features compact design and friendly price. It offers various motorized vari-focal/fixed lens models with a multi-language OSD and HD/SD switchable output. Its structural flexibility and high cost-performance makes the camera an ideal choice for SMB solutions.

Features:

• Max 30fps@1080P
• HD and SD output switchable
• 2.7-12mm motorized lens
• Max. IR length 60m, Smart IR
• IP67, DC12V

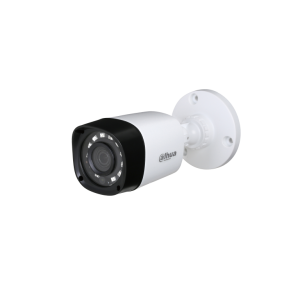

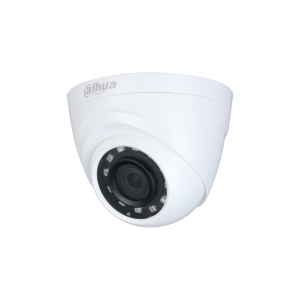

The Lite series 1080P HDCVI camera features a compact design and offers a high quality image at a friendly price. It offers various motorized/fixed lens models with a multi-language OSD and HD/SD switchable output. Its structural flexibility and high costperformance makes the camera an ideal choice for SMB solutions.

Features:

• Max 30fps@1080P
• HD and SD output switchable
• 3.6mm fixed lens
• Max. IR length 20m, Smart IR
• IP67, DC12V

The 1080P starlight HDCVI camera presents a high quality image with rich details even under extreme low-light conditions. Also, the Lite series features compact design and friendly price. It offers various motorized vari-focal/fixed lens models with a multi-language OSD and HD/SD switchable output. Its structural flexibility and high cost-performance makes the camera an ideal choice for SMB solutions.

Features:

• 1/2.8″ 2.0 Megapixel CMOS image sensor, Starlight 0.005Lux
• Max. 30fps@1080P
• HD and SD output switchable
• Built-in mic
• 3.6mm fixed lens
• Max. IR length 50m, Smart IR
• IP67, DC12V

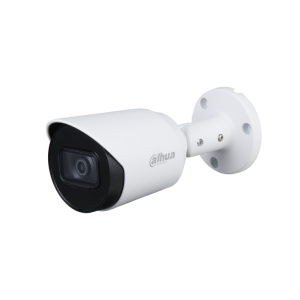

The Lite series 1080P HDCVI camera features a compact design and offers a high quality image at a friendly price. It offers various motorized/fixed lens models with a multi-language OSD and HD/SD switchable output. Its structural flexibility and high cost performance makes the camera an ideal choice for SMB solutions.

Features:

• 1/2.7″ 2.0 Megapixel Progressive CMOS image sensor
• Max 30fps@1080P
• HD and SD output switchable
• 3.6mm fixed lens
• Built-in mic(-A)
• Max. IR length 30m, Smart IR
• IP67, DC12V

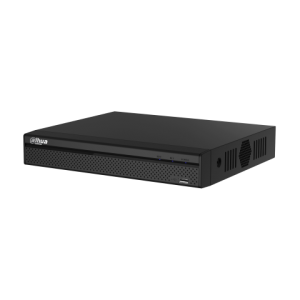

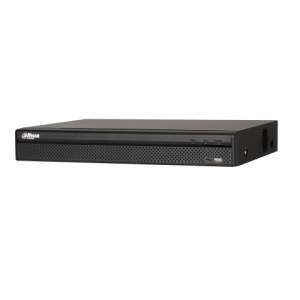

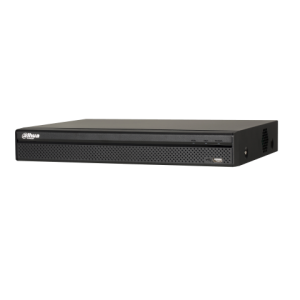

• Supports HDCVI/AHD/TVI/CVBS/IP video inputs
• Support Recording 5M-N(1~10fps), 4M-N/1080P(1~15fps); 1080N/720P/960H/D1/CIF (1~25/30fps)
• Support max 6 channels IP camera inputs, each channel up to 6MP; Max 24Mbps incoming bandwidth
• Smart Search and Intelligent Video System
• Support 1 SATA HDD, each up to 10TB capacity

• Supports HDCVI/AHD/TVI/CVBS/IP video inputs
• Support Recording 5M-N(1~10fps), 4M-N/1080P(1~15fps); 1080N/720P/960H/D1/CIF (1~25/30fps)
• Max 12/24 channels IP camera inputs, each channel up to 6MP; Max 48/96Mbps Incoming Bandwidth
• Smart Search and Intelligent Video System
• Support 1 SATA HDD, each up to 10TB capacity

• Supports HDCVI/AHD/TVI/CVBS/IP video inputs
• Support recording 5M-N(1~10fps), 4M-N/1080P(1~15fps); 1080N/720P/960H/D1/CIF (1~25/30fps)
• Max 24 channels IP camera inputs, each channel up to 6MP; Max 96Mbps Incoming Bandwidth
• Smart Search and Intelligent Video System
• Support 2 SATA HDD, each up to 10TB capacity

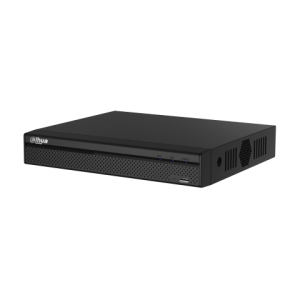

• Supports HDCVI/AHD/TVI/CVBS/IP video inputs
• Support recording 4K(1~7fps), 6MP(1~10fps), 5MP(1~12fps), 4MP/3MP(1~15fps), 4M-N/1080P/720P/960H/D1/CIF (1~25/30fps)
• Max 12 channels IP camera inputs, each channel up to 8MP; Max 48Mbps Incoming Bandwidth
• Smart Search and Intelligent Video System
• Support 1 SATA HDD, each up to 10TB capacity

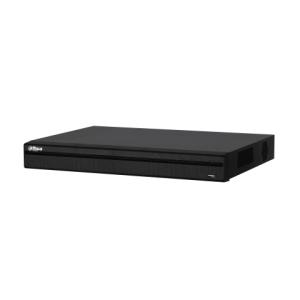

• Supports HDCVI/AHD/TVI/CVBS/IP video inputs
• Support 4K(1~7fps), 6MP(1~10fps), 5MP(1~12fps), 4MP/3MP(1~15fps), 4M-N/1080P/720P/960H/D1/CIF (1~25/30fps)
• Max 12/24 channels IP camera inputs, each channel up to 8MP; Max 48/96Mbps Incoming Bandwidth
• Smart Search and Intelligent Video System
• Support 2 SATA HDD, each up to 10TB capacity

This camera adopts the latest starlight technology and displays better color image in the condition of low illumination. It supports dust-proof function, waterproof function and vandal-proof function, complying with the standards of IP67.

Features:

• 8MP, 1/2.7″ CMOS image sensor, low illuminance, high image definition
• Outputs max. 8MP (3840 × 2160) @15 fps, and supports 2688×1520 (2688 × 1520) @25/30 fps
• H.265 codec, high compression rate, ultra-low bit rate
• Built-in IR LED, max IR distance: 30 m
• ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
• Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
• Intelligent detection: Intrusion, tripwire
• Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access,voltage detection
• Supports max. 256 GB Micro SD card
• 12V DC/PoE power support
• IP67 protection

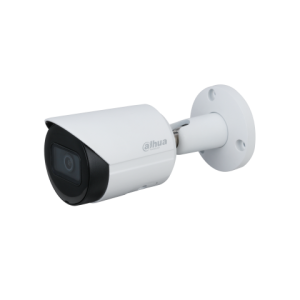

This camera adopts the latest starlight technology and displays better color image in the condition of low illumination. It supports dust-proof function, waterproof function and vandal-proof function, complying with the standards of IP67.

 Features:

• 4MP, 1/3” CMOS image sensor, low illuminance, high image definition
• Outputs 4MP (2560 × 1440)@25/30fps, Max. supports 4MP (2688 × 1520)@20 fps
• H.265 codec, high compression ratio, ultra-low bit rate
• Built-in IR LED, max IR distance: 30 m
• ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
• Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
• Intelligent detection: Intrusion, tripwire
• Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection
• Supports max. 256 GB Micro SD card
• 12V DC/PoE power supply
• IP67 protection

This camera adopts the latest starlight technology and displays better colorful image in the environment of low illumination. It supports waterproof function, dust-proof function and tamper-proof function, complying to the standards of IP67 and IK10.

Features:

• 4MP, 1/3” CMOS image sensor, low illuminance, high image definition
• Outputs 4MP (2560 × 1440)@25/30 fps, max. supports 4MP (2688 × 1520) @ 20 fps
• H.265 codec, high compression rate, ultra-low bit rate
• Built-in IR LED, max IR distance: 30 m
• ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
• Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
• Intelligent detection: Intrusion, tripwire
• Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal ac- cess, voltage detection
• Supports max. 256 GB Micro SD card
• 12V DC/PoE power support
• IP67, IK10 protection grade

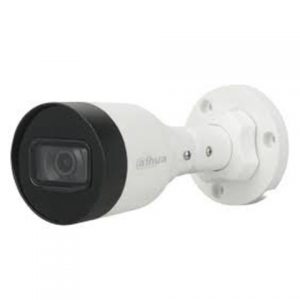

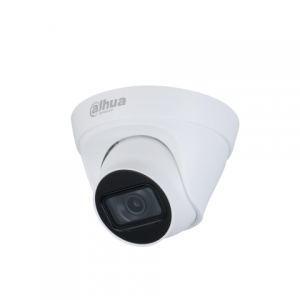

Features:

• 2MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
• Outputs max. 2MP (1920 × 1080) @25/30 fps
• H.265 codec, high compression rate, ultra-low bit rate
• Built-in IR LED, max. IR distance: 30 m
• ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
• Rotation mode, DWDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
• Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access
• 12V DC/PoE power support
• IP67 protection

• Up to 1ch@8MP/ 4ch@1080P decoding
• Max 80Mbps incoming bandwidth
• Up to 8Mp resolution preview & playback
• HDMI/VGA simultaneous video output
• Support 1 SATA HDD up to 10TB capacity

• Smart H.265+/Smart H.264+/H.265/H.264/MJPEG; H.265 auto switch
• 4ch@8MP(30fps)/ 16ch@1080P(30fps) decoding
• Max 320 Mbps incoming bandwidth
• Up to 12MP resolution for live view and playback
• Support 2 SATA HDD, each up to 10TB capacity

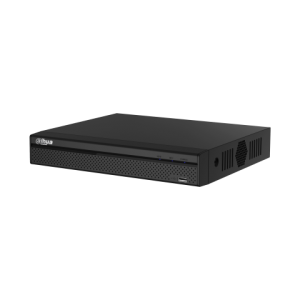

• 4/8-channel IP video access
• Smart H.265+/Smart H.264+/H.265/H.264; H.265 auto switch
• 8-channel decoding @1080p(30fps)
• Max 80 Mbps incoming bandwidth
• Up to 8MP Resolution for Preview and Playback
• Support 1 SATA HDD up to 10TB capacity
• Support IPC UPnP, 4PoE ports

• Support resolution up to 4k(3840x2160p)/30Hz
• Max bandwidth: 340MHz
• Support input up to 8 meters AWG26 HMI standard cable length, output up to 8meters AWG26 HDMI standard cable length

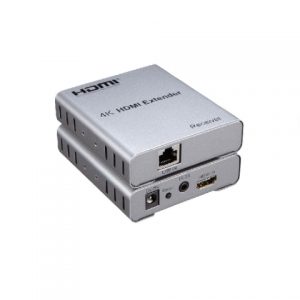

The purpose of the extender is to achieve long-distance signal transmission with low-cost wires.

• Support resolution up to 4k(3840x2160p)/30Hz
• 120m long distance transmission
• Max bandwidth: 340MHz

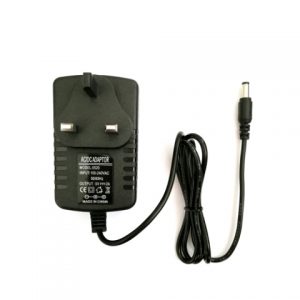

• Comes with 1xReceiver, 1xTransmitter, 2x DC 5V 1A adaptor
