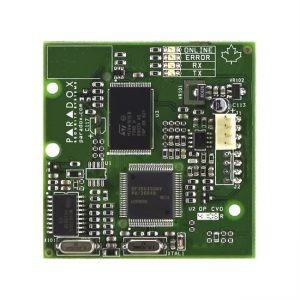

• Voice-guided menu
• Dial up to 8 telephone numbers to report a burglar, panic or fire alarm using prerecorded messages
• Control PGMs and toggle utility keys remotely via telephone using DTMF
• Connects directly onto the control panel
• In-Field firmware upgradeable via 307USB using an EVO Series panel
• Compatible with EVO Series, Spectra SP Series (V2.10 or higher), MG6250, MG5000, MG5050 (V2.10 or higher), MG5075 and PCS250 GPRS / GSM Module

• Reports control panel events via IP to the Paradox IPR512 GPRS / IP Monitoring Receiver and / or IPRS-7 GPRS / IP PC Receiver Software
• Two I/Os on board; controlled via the web interface, triggering an email
• Sends notification and alarm system events via email
• Arm / Disarm individual partitions via Insite GOLD app
• Connects to Swan for easy installation (no port forwarding)
• Enables Insite GOLD, or BabyWare to access your system through the Internet
• Push notification to Insite GOLD app
• HTTPS support for improving security (HyperText Transfer Protocol Secure; a widely used communications protocol for secure communication over a computer network)
• Very low bandwidth consumption
• Easy installation; built-in clip for mounting in a metal box
• Supported language: English

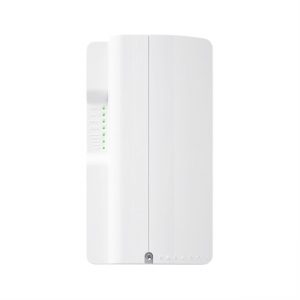

• Compatible with EVO Series, Spectra SP Series, MG5000, MG5050 and MG5075

• Report events to the IPR512 GPRS/IP Monitoring Receiver and/or IPRS-7 IP/GPRS PC Receiver Software
• Report via text message (up to 16 cell phone numbers)
• Control panel communication supervision
• End-user can arm or disarm the system by sending a text message (SMS) to the PCS250
• Send pre-recorded voice messages to up to 8 telephone numbers to report alarms using the optional VDMP3 Paradox Plug-in Voice Module (GSM mode)
• Simple installation with 4-wire serial connection
• Optional rod antenna can be installed up to 18m (60ft) from the module using optional antenna cable extensions depending on the local signal strength
• 128-bit (MDS) and 256-bit (AES) encryption (GPRS mode)
• Increase the distance between the panel and the PCS250 module with an RS485 link (GSM mode only via e-bus). A CVT485 module must be added to the panel in order to accomplish this

• 32 wireless zones (SP Series only)
• Maximum number of remote controls: 32
• Remote control compatibility: REM1, RAC1
• Transmitter compatibility: DCT10, DCTXP2, DCT2, PMD1P, PMD75, PMD85, SD738 (SP only)
• In-field firmware upgradable via In-Field Firmware Upgrade software
• RF jamming supervision
• Low battery, tamper, and check-in supervision
• Transmitter signal strength display
• 2 PGM outputs follow buttons 1 and 2 on REM1/RAC1 (also programmable through the panel)

• Maximum number of remote controls: 999 with EVO Series, 32 with Spectra SP Series
• Supports wireless PGMs (8 with EVO Series, 16 with Spectra SP Series only)
• Supports SR130 and SR150 Wireless Sirens
• Supports all Magellan transmitters including 2WPGM
• Supports 2 RPT1 and 8 K37 (Spectra SP Series only)
• Remote control compatibility:
• RAC1, REM15, REM1, REM101, REM2, REM3 and REM25
• 3 PGM outputs and 1 optional output
• PGM outputs: PGM1 and PGM2 – 150 mA PGM transistor outputs
• PGM3 – Form C relay output rated at 5A / 28 Vdc, N.O. / N.C. (PGM4 optional)
• Low battery, tamper and check-in supervision for reconnected modules
• Transmitter signal strength display
• Noise level test and indicator
• RF jamming supervision
• In-field firmware upgradeable via 307USB
• Compatible with EVO Series and Spectra SP Series

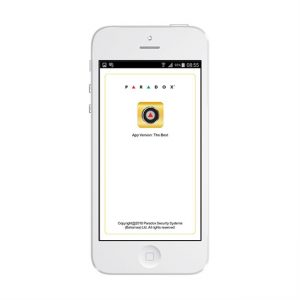

• Multi-site
• Push notification
• Panel Master full control
• View (Video on Demand), and play video event files
• Configure and control PGMs
• Control access doors (grant access, lock, unlock)
• Arm / disarm system
• Panic buttons
• Android and iOS

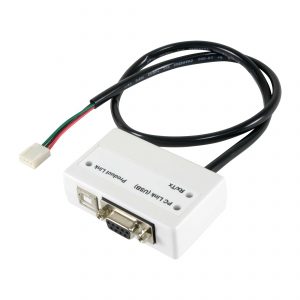

• Enables control panel to communicate with a PC at 60m (200ft)
• Connect from the control panel’s serial port connector to a PC’s serial (DB-9) or USB port
• Includes 3 LED status indicators (PC, Panel and RX/TX)
• Communication speed:
  • 6k baud (MG6250)
  • 4k baud (EVO)
  • 6k baud (MG Series and Spectra SP series)

• Allows to extend the range of wireless communications
• Supports all MAGELLAN transmitters
• Select which zone, PGM and/or keypad signals are repeated
• Signal strength display
• Universal transmitter input (N.O./N.C.)
• In-field firmware upgrade via 307USB
• Wireless range in a typical residential environment:

  – 75m (240ft) with 433MHz;

  – 50m (160ft) with 868MHz

• AC input (16Vac, 20VA)
• Fits in 20cm x 25.5cm x 7.6cm (8in x 10in x 3in) and 28cm x 28cm x 7.6cm (11in x 11in x 3in) metal boxes
• Compatible with MG5000 / MG5050 / MG5075 / RTX3

Note: The RPT1 is not supported by the RTX3 when connected to an EVO panel.

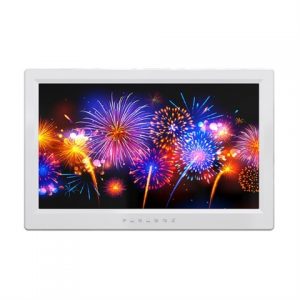

• Built-in zone input
• Customizable labels (zones, partitions, users, doors, and PGMs)
• External SD Media Card slot (4 GB with 2 GB of free space) for uploading photos; acts like a digital picture frame
• Firmware upgradable via SD card
• Indoor temperature reading
• In-wall bracket (optional)
• Compatible with Swan, EVO, Spectra and Magellan

• Control up to 8 PGM outputs
• In-field firmware upgradable via micro SD card
• Powerful advanced processor
• 1 zone/temperature input to connect a detection device or a TEMP07 (External Temperature Sensor)
• Customized translation via web application
• Surface-mount installation only; dimensions 14.4 x 9.6 x 1.4 cm (5.7 x 3.8 x 0.6 in.)
• Available in classic Piano Black and Pristine White, as well as other exciting designer colors

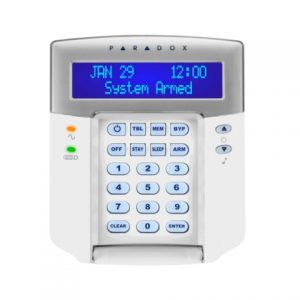

Highlights

• User-Friendly
• Featuring intuitive menus and icons, ultra-fast response time when scrolling through pages, and clear and precise menu-driven prompts; the TM50 makes the user experience easier and friendlier than ever
• SpotOn Alarm LocatorTM
• This optional feature allows the user to upload up to 32 floor plans to the TM50, providing a graphic verification of zone locations customizable with illustrations or photographs.
• OneScreen MonitoringTM
• This optional feature displays the arming status of all partitions and zones. Also, with Solo TestT mode, you can easily test all system zones right from the TM50’s screen.
• External SD Media Card Slot
• Used to upload photos for use with the slide show function and easily upgrade firmware.
• Customizable Labels
• Allows the user to customize and edit zones, areas, users, and PGM labels.

• Real-time zone alarm display (until disarmed)
• In-field firmware upgrade via 307USB
• StayD status LED
• Menu-driven programming for easy system setup (installer and end user)
• 1 keypad zone input
• Independently set chime zones
• 8 one-touch action buttons
• 3 keypad-activated panic alarms
• Adjustable backlight, contrast and scroll speed
• Connects to 4-wire expansion bus
• Compatible with MG5000, MG5050, MG5075, and Spectra SP series V2.31 and up
• Compatible with SP4000, SP65 V4.90 and up

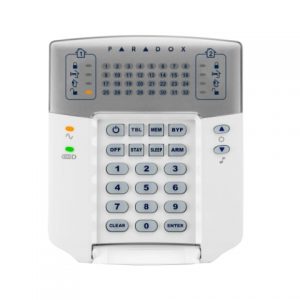

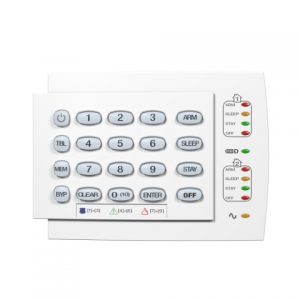

• 10-zone LED display
• Separate Arm, Sleep, Stay and Off LEDs per partition
• Patented Key Light display (button lights up to indicate an open zone)
• 1 keypad zone input
• Independently set chime zones
• 7 one-touch action buttons
• 3 keypad-activated panic alarms
• Adjustable backlight
• Connects to 4-wire communication bus
• Compatible with MG5000, MG5050, MG5075, and Spectra SP series

• 2 partitions and up to 64 wireless zones
• Supports optional quad-band GPRS/GSM module with 2 SIM cards (GPRS14)
• Built-in transceiver (433 or 868 MHz)
• Speakerphone via GSM or landline
• Built-in voice and utility reporting(up to 8 telephone numbers)
• Two-way voice communication (via GSM or landline)
• 16 users and 16 remote controls
• 8 wireless PGMs (2 I/Os can be hardwired)
• 256 events buffered
• Supports 4 wireless sirens (SR150)
• Supports 4 wireless keypads (K32RF/K37), displays first 32 zones only
• Supports 4 wireless repeaters (RPT1)
• Supports 16 two-way remotes (REM2/REM3)
• Built-in 90 dB siren
• Remote firmware upgrade via GPRS
• Full voice-assisted remote system access via GSM
• High-quality sound for voice tags and menu guidance
• Family message center (up to 30 sec. w/ time stamp)
• Clock with alarm

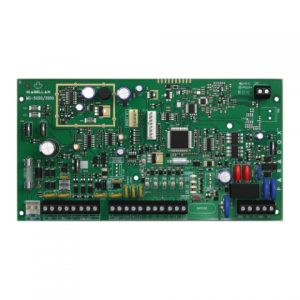

• 32 zones (any of which can be wireless)
• 32 users and 32 remote controls (one per user)
• 2 partitions
• 4-wire communication bus (connect up to 15 keypads)
• Supports RAC1, REM15, REM1, REM101, REM2, REM3 and REM25 remote controls
• Supports up to 8 K37 wireless keypads
• Supports up to 2 RPT1 wireless repeaters
• Supports PCS Series
• Supports IP150 Internet Module
• Supports VDMP3 Plug-in voice dialer
• Supports 16 PGMs (any of which can be wireless)
• App-based system control via Insite GOLD
• In-field firmware upgrade via 307USB and BabyWare
• Menu-driven programming for the Installer, Master and Maintenance codes
• Multiple telephone numbers for event reporting: 3 monitoring and 5 for Personal Dialing
• Patented 2 opto coupler dialer circuit – the most reliable dialer in the industry (US Patents 5751803, RE39406)
• Calendar with Daylight savings Time
• New Sleep arming method
• Push button power reset
• RF Jamming Supervision
• 9.6k baud communication with BabyWare
• 256 events buffered
• Supports Memory Key

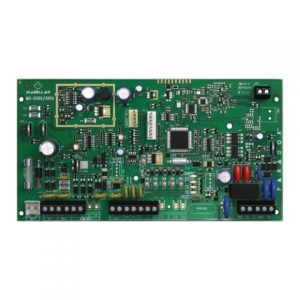

• 32 zones (any of which can be wireless)
• 32 users and 32 remote controls (one per user)
• 2 partitions
• 4-wire communication bus (connect up to 15 keypads)
• Supports RAC1, REM15, REM1, REM101, REM2, REM3 and REM25 remote controls
• Supports up to 8 K37 wireless keypads
• Supports up to 2 RPT1 wireless repeaters
• Supports PCS Series
• Supports IP150 Internet Module
• Supports VDMP3 Plug-in voice dialer
• Supports 16 PGMs (any of which can be wireless)
• App-based system control via Insite GOLD
• In-field firmware upgrade via 307USB and BabyWare
• Menu-driven programming for the Installer, Master and Maintenance codes
• Multiple telephone numbers for event reporting: 3 monitoring and 5 for Personal Dialing
• Patented 2 opto coupler dialer circuit – the most reliable dialer in the industry (US Patents 5751803, RE39406)
• Calendar with Daylight savings Time
• New Sleep arming method
• Push button power reset
• RF Jamming Supervision
• 9.6k baud communication with BabyWare
• 256 events buffered
• Supports Memory Key

• One input port, 2 completely isolated output ports
• Each output port provides communications up to 900m (3000ft)

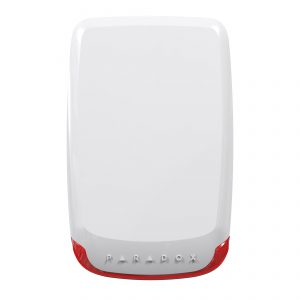

• Battery operated (3 “C” alkaline batteries) Weather-resistant design with UV protection
• 2-way, fully supervised communication with the control panel
• 100dB Piezo siren
• Separate alarm notifications for intrusion and fire
• Dual-tamper detection (cover and wall)
• Squawk functionality
• Wireless range in a typical residential environment: Up to 70m (230 ft)
• Strobe lens available in 3 colors (red, blue, and amber)
• Fully powered using three 1.5 Vdc type “C” alkaline batteries (included)
• Signal strength/RF transmission and status LED
• Operating temperature: -25ºC to 55ºC (-13ºF to 131ºF)
• RF frequency: 433MHz or 868MHz
• Dimensions: 13.4cm x 21.17cm x 5.1cm (5.29in x 8.34in x 2.01 in)
• Compatible with MG5000 and MG5050 V4.0 or higher, MG5075, Spectra SP series V4.0 or higher (except SP4000) when using an RTX3 V1.5 or higher, as well as with MG6250 V3.0 and higher
